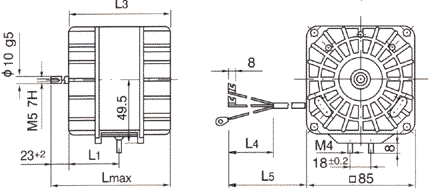

The EV 85 type motors are designed for ventilation or refrigeration compressors. The motors are single-phase, induction, shaded-pole,thermally protected. Nominal supply voltage is 110-250 V, while the supply frequency is 50/60 Mz. The motors' operation mode is S1 (prolonged operation conditions) according to DIN 42950. Protection rate is IP 44 DIN 40050. The technical parameters below are guaranteed for environment temperatures from -30C up to +55C, maximum altitude of 1000m and normal climatic conditions NII. Type Power Consumption Nominal Rotation Speed Starting Torque Weight LMAX L1 L3 L4 L5 EV 85-20/4 50 1280 0.35 1.510 94 34 69 100 500 EV 85-30/4 70 1280 0.062 1.830 106 40 81 100 500 EV 85-40/4 90 1280 0.075 2.170 114 44 89 100 500
